iLogic - 三面図一括配置

三面図一括配置

複数ファイルの三面図を一括配置します。

• １．複数の設計ファイルで同じ自動化ルールを実行できるように外部ルールで作成します。
  iLogicブラウザの外部ルールで追加したフォルダを右クリックして[新しい外部ルールを作成]をクリック。

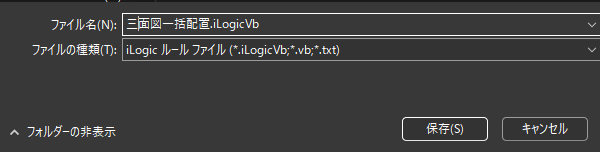

• ２．任意の名前を入力して[保存]をクリック。


• ３．下記コードを入力して[保存]をクリック。


  Sub Main()
      Try
          If ThisApplication.ActiveDocumentType <> DocumentTypeEnum.kDrawingDocumentObject Then Exit Sub
          Dim oDrawingDoc As DrawingDocument = ThisApplication.ActiveDocument
          Dim selectedFiles As Collection = SelectMultipleFiles()
          If selectedFiles.Count = 0 Then Exit Sub
          EnsureSufficientSheets(oDrawingDoc, selectedFiles.Count)

          Dim centerX As Double = 21.0
          Dim centerY As Double = 14.85

          For i As Integer = 0 To selectedFiles.Count - 1
              Try
                  Dim filePath As String = selectedFiles(i + 1)
                  Dim targetSheet As Sheet = oDrawingDoc.Sheets(i + 1)
                  targetSheet.Name = System.IO.Path.GetFileNameWithoutExtension(filePath)
                  CreateOrthographicViewsOnSheet(oDrawingDoc, targetSheet, filePath, centerX, centerY)
              Catch ex As Exception
                  Continue For
              End Try
          Next

          oDrawingDoc.Sheets(1).Activate()
      Catch ex As Exception
      End Try
  End Sub

  Function SelectMultipleFiles() As Collection
      Dim selectedFiles As New Collection()
      Try
          Dim openFileDialog As New System.Windows.Forms.OpenFileDialog()
          With openFileDialog
              .Title = "3Dファイル選択"
              .Filter = "Inventor Parts (*.ipt)|*.ipt|Inventor Assemblies (*.iam)|*.iam|All Files (*.*)|*.*"
              .Multiselect = True
              .InitialDirectory = System.IO.Path.GetDirectoryName(ThisDoc.Document.FullFileName)
          End With
          If openFileDialog.ShowDialog() = System.Windows.Forms.DialogResult.OK Then
              For Each fileName As String In openFileDialog.FileNames
                  selectedFiles.Add(fileName)
              Next
          End If
      Catch ex As Exception
      End Try
      Return selectedFiles
  End Function

  Sub EnsureSufficientSheets(drawingDoc As DrawingDocument, requiredSheets As Integer)
      Try
          Dim currentSheetCount As Integer = drawingDoc.Sheets.Count
          If currentSheetCount < requiredSheets Then
              For i As Integer = 1 To (requiredSheets - currentSheetCount)
                  Dim newSheet As Sheet = drawingDoc.Sheets.Add()
                  newSheet.Name = $"Sheet{currentSheetCount + i}"
              Next
          End If
      Catch ex As Exception
      End Try
  End Sub

  Sub CreateOrthographicViewsOnSheet(drawingDoc As DrawingDocument, targetSheet As Sheet, filePath As String, centerX As Double, centerY As Double)
      Try
          Dim sourceDoc As Document = ThisApplication.Documents.Open(filePath, False)
          Dim viewSpacing As Double = 8.0

          Dim frontViewPos As Point2d = ThisApplication.TransientGeometry.CreatePoint2d(centerX, centerY)
          Dim frontView As DrawingView = targetSheet.DrawingViews.AddBaseView(
              sourceDoc,
              frontViewPos,
              1,
              ViewOrientationTypeEnum.kFrontViewOrientation,
              DrawingViewStyleEnum.kHiddenLineDrawingViewStyle)
          frontView.Name = "正面図"

          Dim topViewPos As Point2d = ThisApplication.TransientGeometry.CreatePoint2d(centerX, centerY + viewSpacing)
          Dim topView As DrawingView = targetSheet.DrawingViews.AddProjectedView(
              frontView,
              topViewPos,
              DrawingViewStyleEnum.kHiddenLineDrawingViewStyle)
          topView.Name = "平面図"

          Dim rightViewPos As Point2d = ThisApplication.TransientGeometry.CreatePoint2d(centerX + viewSpacing, centerY)
          Dim rightView As DrawingView = targetSheet.DrawingViews.AddProjectedView(
              frontView,
              rightViewPos,
              DrawingViewStyleEnum.kHiddenLineDrawingViewStyle)
          rightView.Name = "右側面図"

          AddTitleText(targetSheet, System.IO.Path.GetFileNameWithoutExtension(filePath), centerX, centerY - 10.0)
          sourceDoc.Close(True)
          ThisApplication.ActiveView.Fit()
      Catch ex As Exception
      End Try
  End Sub

  Sub AddTitleText(targetSheet As Sheet, fileName As String, centerX As Double, titleY As Double)
      Try
          Dim titlePos As Point2d = ThisApplication.TransientGeometry.CreatePoint2d(centerX, titleY)
          Dim titleText As Inventor.TextBox = targetSheet.DrawingTexts.AddTextBox(titlePos, fileName)
          titleText.HorizontalJustification = HorizontalTextAlignmentEnum.kAlignTextCenter
      Catch ex As Exception
      End Try
  End Sub



  作成した外部ルールをリボンやショートカットに登録しておくと便利です。


• ４． 配置したいファイルの数だけシートを作成しておく。（シートを作成しない場合、図面枠や表題欄が何もないシートが自動で作成されます）

  作成したルールを右クリックして[ルールを実行]をクリック。

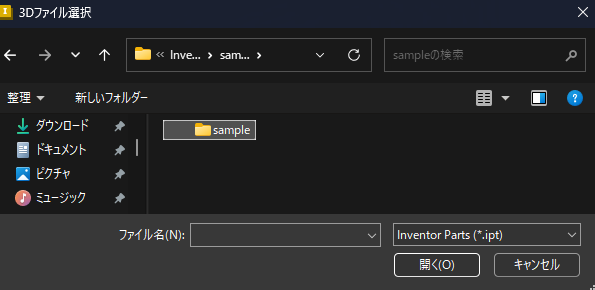

  配置したい図面フォルダかファイルを複数選択して[開く]をクリックすると自動で配置されます。

  三面図の位置、用紙サイズ、尺度等は個々に調整が必要です。
